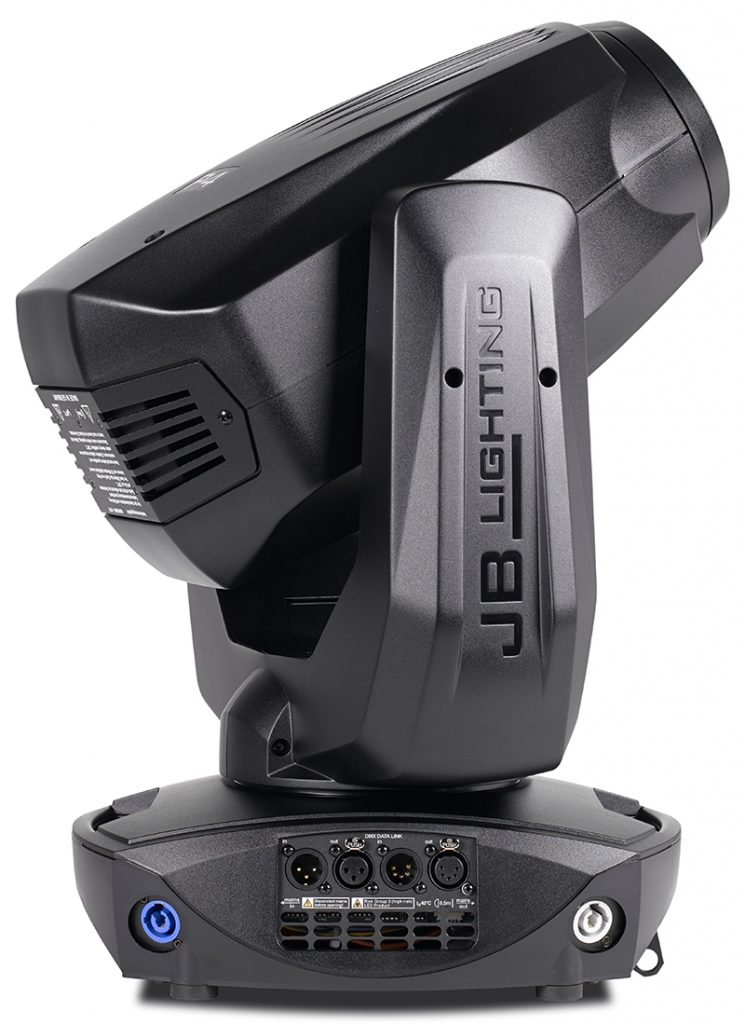

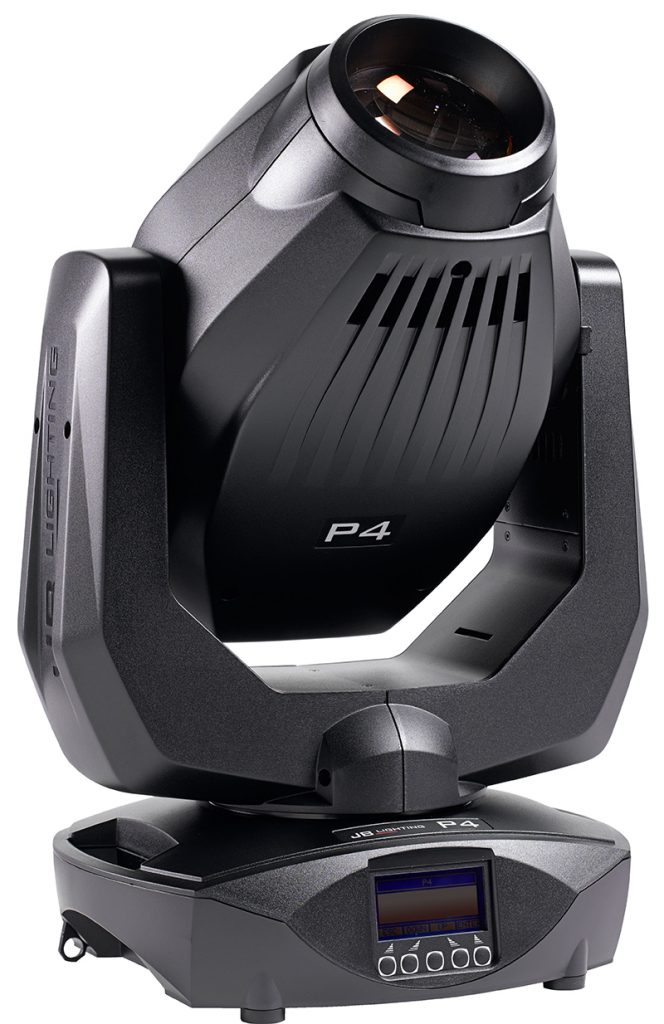

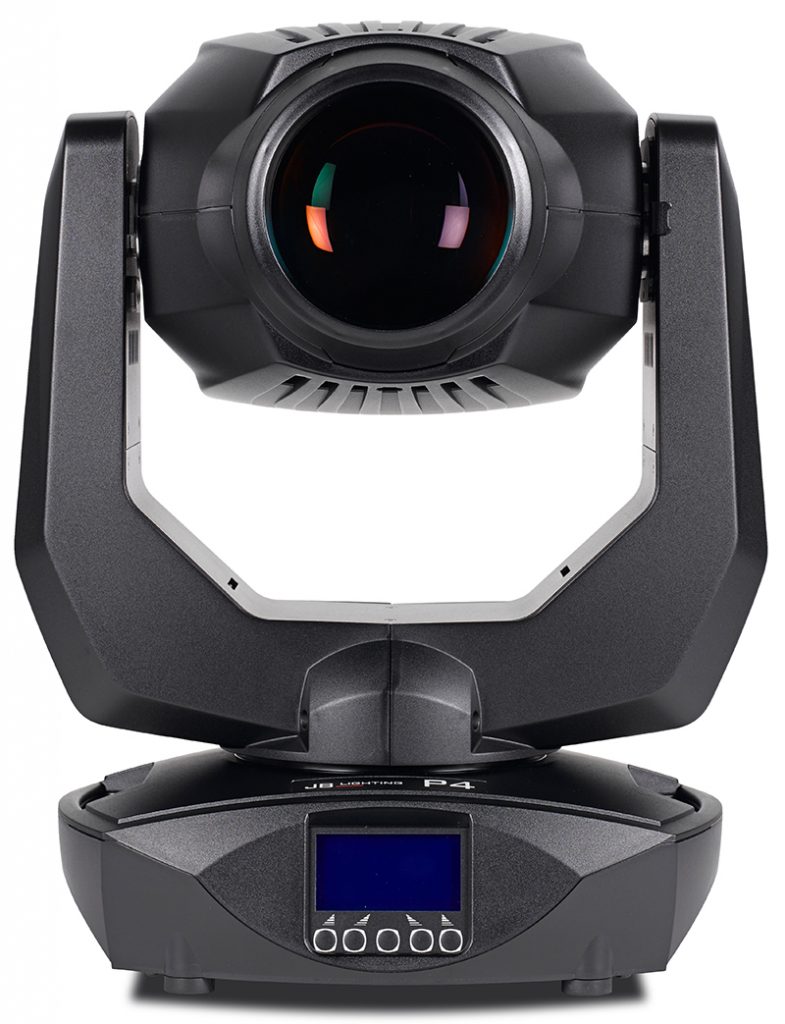

פנס מובינג JB Varyscan P4 280 HRI

Optics and light source
• Osram Sirius HRI 280W short arc discharge lamp with integrated reflector
• High luminance due to very short arc and high internal pressure
• 2.000h expected life time
• Zoom range beam application: 2,3° – 10°
• Zoom range spot application: 5° – 21,6°Effects
• 1 gobo wheel with 10 static gobos and 4 apertures for different beam sizes
• 1 gobo wheel with 9 rotatable, indexable and exchangeable gobos

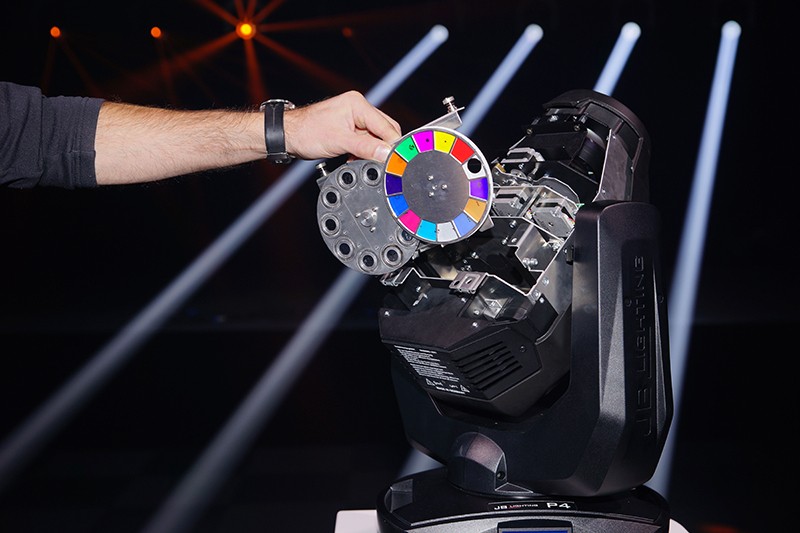

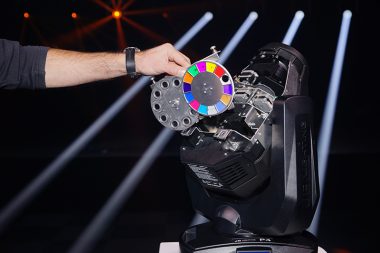

• 1 color wheel with 10 full/semi-colors
• CTO- and CTB filter
• UV filter
• Rainbow effect in various speed
• 6 facet linear prism, rotatable and indexable
• 8 facet circular prism, rotatable and indexable
• Frost effect, variable
• Dimmer 0% – 100%
• Shutter with pre-programmed pulse and ramp function
• Zoom and focusMovement
• 3 phase extra strong stepping motors
• Precise and very fast movement
• 433° pan / 280° tilt

Control and programming
• Protocol: USITT DMX-512
• JB-Lighting Wireless DMX on-board
• Stand-alone mode
• Master/slave function
• Built-in DMX analyzer

Construction
• Slide-in module
• Rugged construction
• Transport lock
• Forced air cooling (temperature regulated, low noise)
• Graphical display, electronically revolvable
• Neutrik 3pin and 5pin in/out
• Neutrik PowerCon in/out

Rigging
• 2 omega brackets for quick and comfortable mounting in any direction with four different mounting possibilities

Electrical specification
• Max. power consumption 480VA
• Input voltage range 100 – 240V, 50/60HZ
• Electronic ballast

Mechanical specifications
• Dimensions: W 381 x H 582 x D 265mm
• Weight 15 kg

Accessories
• Wireless TRX
• Double flight case made by Amptown with SIP foam inlets
• Quad flight case made by Amptown with SIP foam inlets
